ZSW Vibrating Feeder

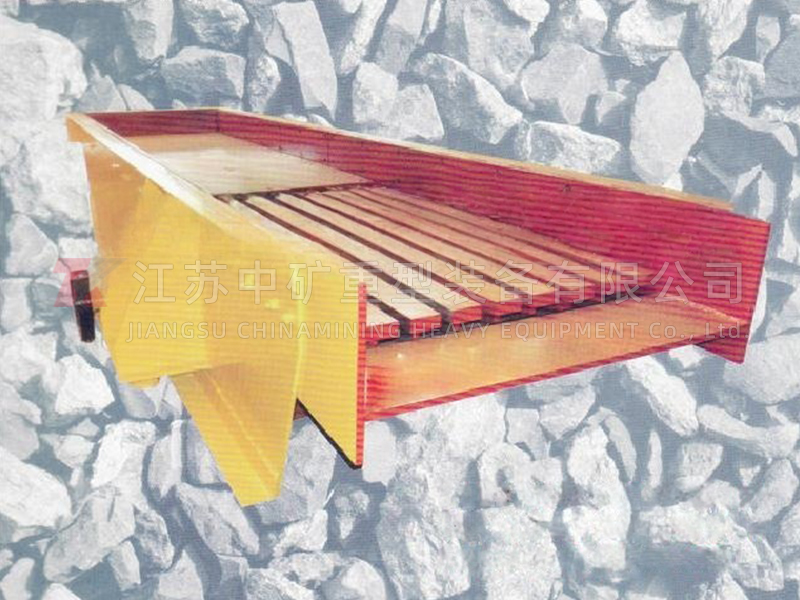

ZSW vibrating feeder
ZSW vibrating feeder can uniformly, regularly and continuously deliver block and granular materials from storage silo to the receiving device in the production process. In the sand and gravel production line, it can continuously and uniformly feed the crushing machinery and perform coarse screening of materials. It is widely used in crushing and screening joint equipment in industries such as metallurgy, coal mining, mineral processing, building materials, chemical industry and abrasive materials.
Product features
Ultra short models
Uniformly conveying large block materials
Feeding and screening simultaneously
Technical parameter table
Model |
(mm × mm) Size of material trough | (mm) Max. feed particle size |
(t/h) Processing capacity |
(r/min) Eccentric shaft speed |
(kw) Motor power |
Weight (Excluding motors) |
(mm) External dimensions |
GZD 300×90 | 3000×900 | 450 | 40-100 |
| 2×2.2 | 2.64 | 3050×1430×1550 |
GZD 300×100 | 3700×1000 | 500 | 100-150 |
| 2×3.7 | 3.69 | 4250×1874×1130 |
GZD 430×120 | 4300×1200 | 650 | 200-400 |
| 2×5.5 | 4.2 | 4955×2206×1120 |
ZSW-380×96 | 3800×960 | 500 | 100-160 | 500-714 | 11 | 4.2 | 3882×1684×1340 |
ZSW-490×110 | 4900×1100 | 630 | 120-280 | 500-800 | 15 | 5.5 | 4957×2400×2150 |
ZSW-590×110 | 5900×1100 | 630 | 200-350 | 750 | 22 | 6.1 | 6000×2500×2150 |
ZSW-600×130 | 6000×1300 | 750 | 400-560 | 500-800 | 30 | 7.8 | 6082×2580×2083 |
ZSW-600×150 | 6000×1500 | 800 | 460-575 | 500-800 | 30 | 8.7 | 6086×2662×2186 |
ZSW-600×180 | 6000×1800 | 800 | 600-800 | 500-800 | 37 | 11.8 | 6310×3262×2230 |
