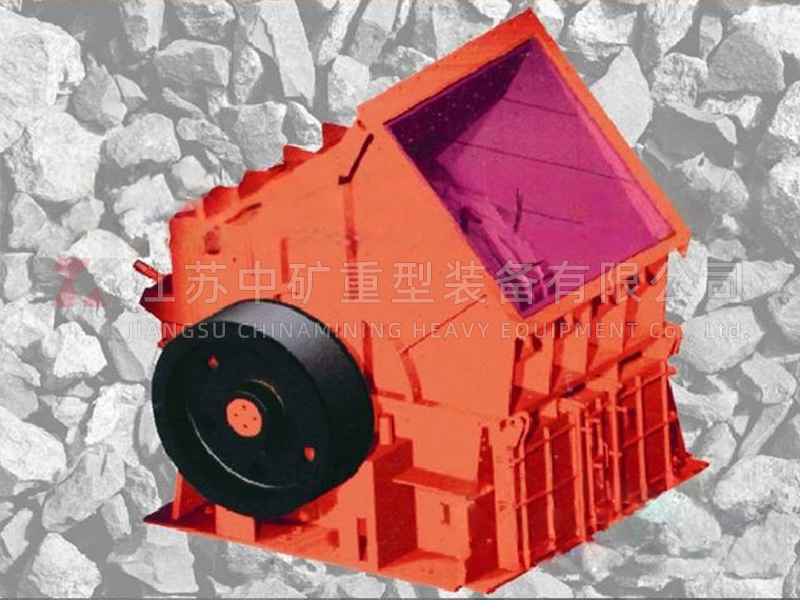

PCF Single-stage Hammer Crusher
Single-stage hammer crusher is heavy hammer crusher mainly used for crushing limestone. Large single-stage hammer crusher can directly crush limestone with a diameter of 1000mm to about 20mm which has strong crushing capacity. It is suitable for crushing limestone, gypsum, coal, sand shale and so on with a compressive strength not exceeding 200MPa. It is used in crushing and screening combined equipment in fields such as mineral processing, building materials, water conservancy and chemical industry.
Product features
High crushing ratio
Uniform product granularity
Less overcrushing phenomenon
Hammer head of high performance
Large feed size
Simple structure and reliable operation
Compact structure and convenient maintenance
Low energy consumption and economical operating costs
Technical parameter table
Model | (mm) Rotor size | (mm) Feed particle size | (mm) Discharge size | (t/h) Production capacity | (kw) Power | （t） Weight |
PCF1412 | 1420×1194 | 600×600×600 | 25-75 | 80-120 | 132-220 | 27000 |
PCF1616 | 1650×1600 | 600×600×900 | 25-75 | 180-240 | 315-355 | 43300 |
PCF1616J | 1650×1740 | 800×800×1000 | 25-75 | 150-240 | 250-355 | 42000 |
PCF1818 | 1900×1750 | 900×900×1000 | 25-75 | 300-350 | 560 | 69550 |
PCF2018 | 2020×1802 | 1000×1000×1000 | 25-75 | 350-500 | 710 | 88710 |
PCF2022 (不带）(without) | 2018×2227 | 1000×1000×1000 | 25-75 | 500-600 | 800 | 111000 |
PCF2022 (单辊）(Single roller) | 2018×2227 | 1000×1000×1500 | 25-75 | 600-700 | 900 | 120000 |
PCF2022 (双辊）(Double roller) | 2018×2227 | 1000×1000×1500 | 25-75 | 700-800 | 900 | 130000 |
2PCF1818 | 1800×1800 | 1000×1000×1500 | 25-75 | 700-900 | 710×2 | 119025 |
2PCF1820 | 1800×2000 | 1250×1000×1000 | 25-75 | 900-1000 | 710×2 | 122665 |
2PCF2022 | 2018×2227 | 1000×1000×1500 | 25-75 | 900-1200 | 800×2 | 142500 |
2PCF2025 | 2018×2457 | 1000×1000×1500 | 25-75 | 1000-1300 | 900×2 | 148000 |
