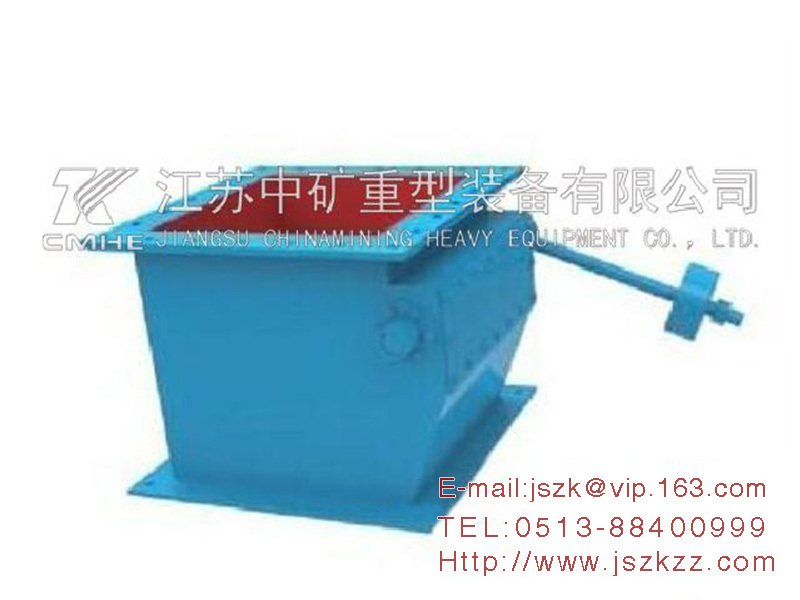

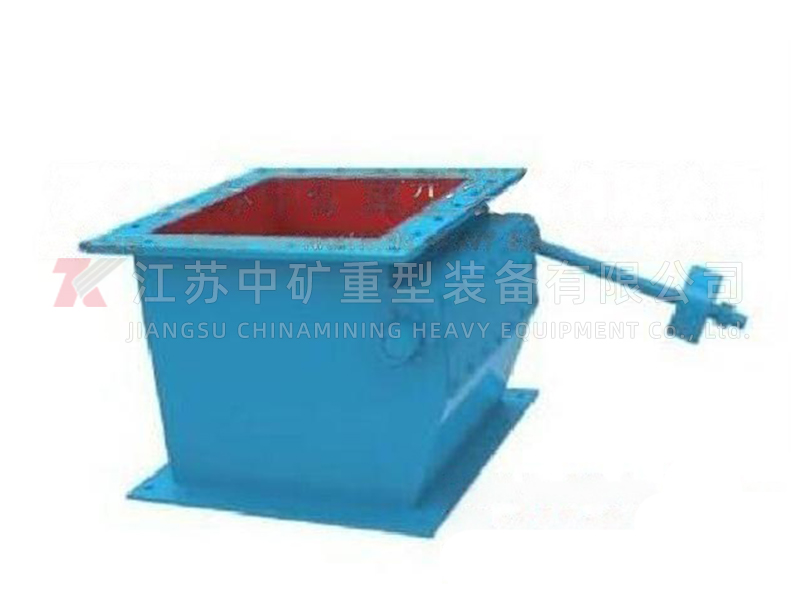

Air lock device
Ⅰ. Purpose
The air lock device is mainly used for air lock during the grinding and discharge of raw materials in cement mills.
Ⅱ. Technical performance
Production capacity: throughput capacity is 600t/h
Inflatable discharge chute: inflation capacity of 285m3/h, wind pressure of 500mm H2O
Air lock: inflation capacity 200-250m3/h, air pressure 300mmH2O

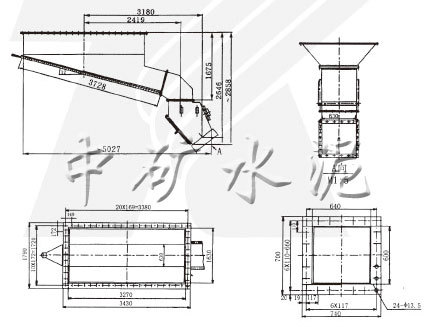

Ⅲ. Outline Installation Dimensional Drawing
