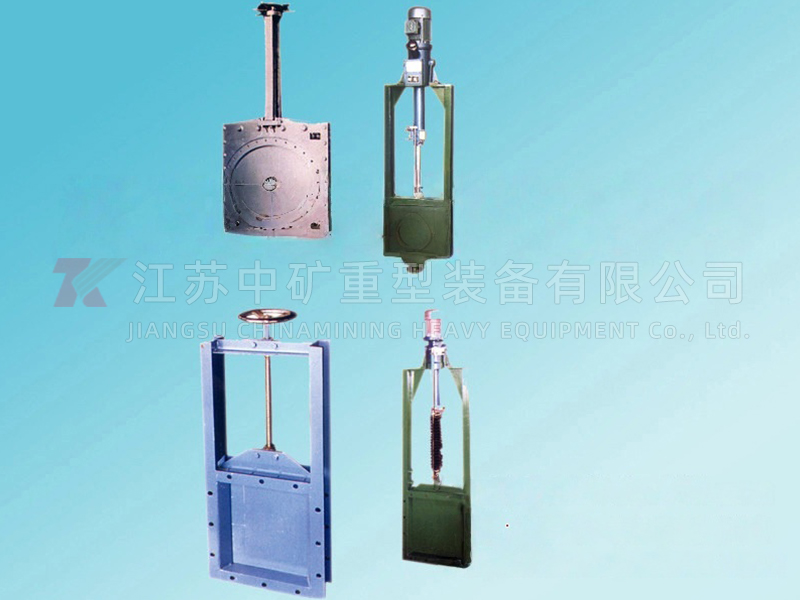

Manual cone bucket plug valve
Manual cone bucket slide valve is suitable for ventilation and dust removal and solid powder conveying adjustment and cut off.
Structural features:
The manual cone bucket flapper valve has simple structure, convenient operation, flexible sliding of the valve plate, and the body is not easy to deform. The manual cone bucket flapper valve solves the phenomenon of dust blocking and dust accumulation in the old flapper valve, and is an ideal equipment for regulating and cutting off the conveying flow of grinding.
Performance parameters:
Nominal pressure | Medium flow rate | Use temperature | Applicable media |
0.05MPa | ≤ 28 m/s | ≤ 300 ℃ | Dust gas, solid powder, crystal material |
