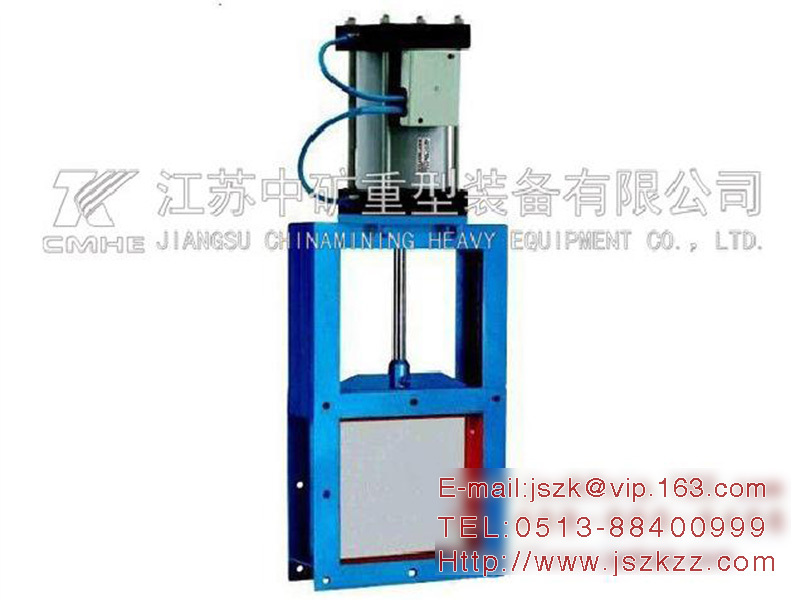

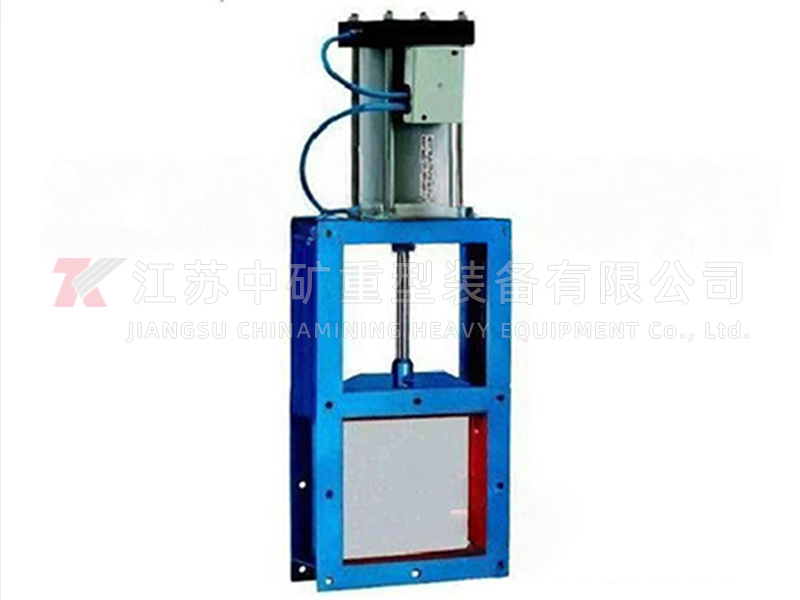

Electric and electro-hydraulic push rod flat gate valve (DTLV-0.1/DLVds-0.1)
Ⅰ. Purpose
DTLV-0.1 electric push rod flat gate valve is an improved product of Jiangsu ChinaMining, widely used in industries such as building materials, metallurgy and mining. It is ideal equipment for controlling the flow of dust materials.
Ⅱ. Working principle
DTLV-0.1 electric push rod flat gate valve mainly consists of components such as frame, gate plate and DDT electric push rod. During operation, the connecting rod is driven by electric thrust action to move the gate in a horizontal reciprocating motion, achieving the purpose of opening and closing the valve.
Ⅲ. Main performance parameters
（MPa）Nominal pressure | 0.1~0.6 |
（℃）Working temperature | ≤150 |
（T/h）Feeding capacity | Dust materials |
Ⅳ. Model preparation instructions
DLVds-0.1
DLVds-0.1 electric single and bidirectional flat gate valves
Ⅰ. Purpose
Jiangsu ChinaMining DLVds-0.1 electric single and bidirectional flat gate valves are widely used in pipelines for dust material flow control in industries such as building materials, metallurgy and mining. It is ideal equipment for controlling the flow of dust materials.
Ⅱ. Characteristics
Simple structure, light weight, flexible operation, and convenient assembly and disassembly. DLVds-0.1 electric single and bidirectional flat gate valves are made of carbon steel, which has the advantages of high strength, good performance and long service life. And the screw rod and nut adopt a soft protective cover structure, which is not affected by external dust.
Ⅲ. Working principle
Jiangsu ChinaMining DLVds-0.1 electric single and bidirectional flat gate valve mainly consists of frame, screw nut, hand wheel, sprocket and gate plate. The hand wheel (sprocket) rotates, and the screw rod moves horizontally with the screw nut and gate plate, achieving the purpose of valve opening and closing.

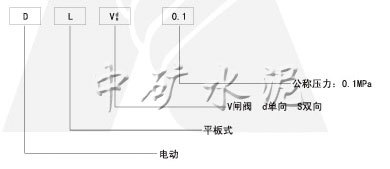

Ⅳ. Model preparation instructions
Ⅴ. Main performance parameters
（MPa）Nominal pressure | 0.6 |
（℃）Applicable temperature | ≤150 |
Applicable medium | Dust materials |
Ⅵ. Appearance and connection dimensions
Main performance parameters of 5.
Nominal pressure (MPa) | 0.6 |
Applicable temperature (℃) | ≤ 150 |
Applicable media | Dust material |
6. shape and connection dimension

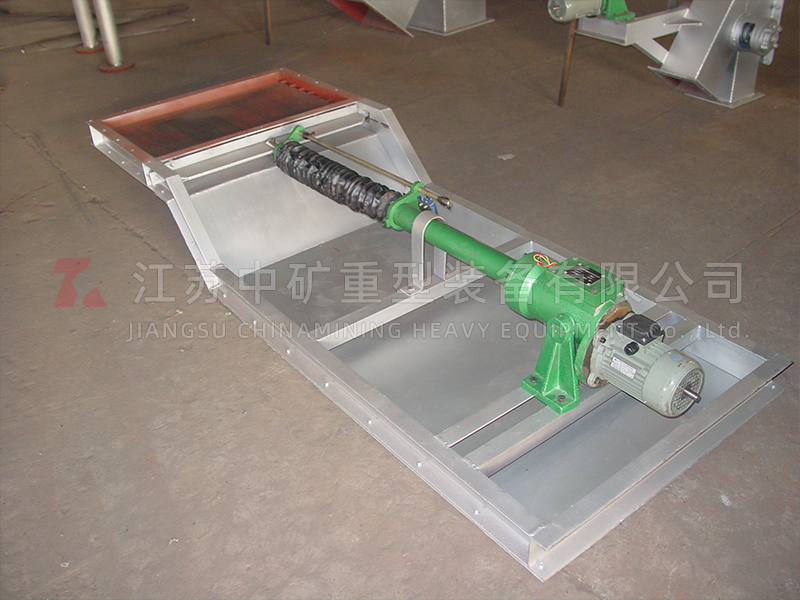

Figure 1 Electric single and bidirectional flat gate valves
