Electric heavy hammer flap air lock ash discharge valve
Electric heavy hammer flap lock air ash discharge valve is widely used in building materials, metallurgy, chemical industry, electric power and other departments for cyclone dust collector, bag dust collector and electric dust collector ash hopper lock air, ash discharge.
The electric heavy hammer flap lock air ash discharge valve can also be used as a variety of mills, dryers, granaries, warehouses and other equipment lock air discharge device.
Technical parameter table
Applicable media | Working temperature | Ash discharge |
Drying dust | 150℃ | 1.5~30 |

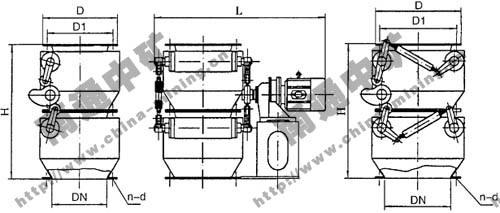

DN | D1 | D | H | H1 | L | N-d | Ash unloading capacity m3/h | Type of transmission device | Opening and closing frequency times/min | Power kw |
150 | 196 | 226 | 460 |
| 1400 | 6-Φ11 | 1.5~2 | BWY-15-59 | 25 | 0.6 |
200 | 245 | 280 | 580 |
| 1500 | 8-Φ11 | 4~5 | BWY-15-59 | 25 | 0.6 |
220 | 265 | 300 | 580 |
| 1540 | 8-Φ11 | 5~7 | BWY-15-59 | 25 | 0.6 |
250 | 300 | 340 | 580 |
| 1610 | 12-Φ11 | 5~8 | BWY-15-59 | 21 | 0.8 |
300 | 350 | 390 | 620 |
| 1840 | 12-Φ13 | 7~12 | BWY-15-59 | 21 | 1.1 |
320 | 370 | 410 | 700 |
| 1980 | 12-Φ13 | 9~15 | BWY-15-59 | 21 | 1.1 |
400 | 450 | 490 | 800 | 660 | 2060 | 12-Φ13 | 12~15 | BWY-15-59 | 12 | 1.66 |
450 | 500 | 540 | 800 | 740 | 2180 | 12-Φ13 | 16~34 | BWY-15-59 | 12 | 1.66 |
500 | 560 | 600 | 950 | 800 | 2210 | 12-Φ13 | 20~45 | BWY-15-59 | 12 | 1.66 |
600 | 660 | 700 |
| 920 | 2310 | 16-Φ13 | 34~72 | BWY-15-59 | 12 | 3.18 |
720 | 780 | 820 |
| 1060 | 2380 | 16-Φ13 | 51~110 | BWY-15-59 | 12 | 3.18 |
800 | 870 | 920 |
| 1150 | 2420 | 16-Φ13 | 77~160 | BWY-15-59 | 12 | 3.18 |
1000 | 1080 | 1140 |
| 1450 | 2640 | 20-Φ18 | 150~300 | BWY-15-59 | 8 | 4.3 |
